MOES Zigbee Thermostat for Electric Heating 16 A

Product detailed description

MOES Star Ring smart thermostat for electric underfloor heating with Zigbee 3.0 🔥

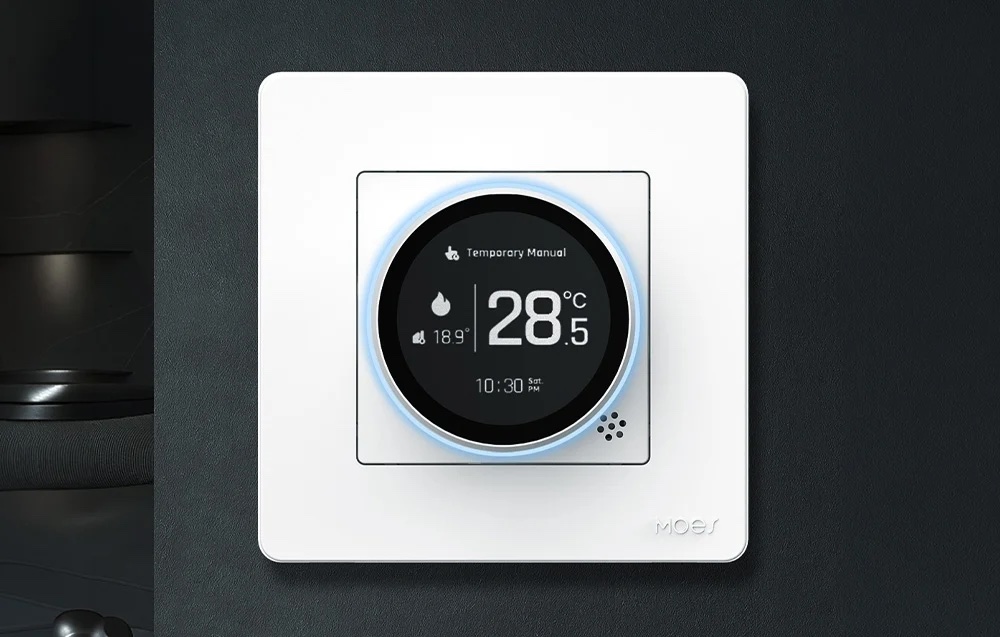

MOES ZHT-SR-GB from the Star Ring series is a smart thermostat for electric heating that combines precise temperature control, modern design and convenient remote control. The device switches loads of up to 16 A (approx. 3.6 kW at 230 V), so it directly handles electric underfloor heating, heating mats and cables as well as other electric heaters without an additional contactor.

Thanks to the Zigbee 3.0 protocol, the thermostat fits into your smart home. Control it from your phone via the MOES, Tuya Smart and Smart Life apps, by voice via Amazon Alexa and Google Assistant, or the classic way on the wall with the rotary knob and touch buttons. The package also includes an external temperature sensor cable for measuring the floor temperature.

Precise control of floor and room temperature

This underfloor heating thermostat uses an NTC3950 (10K) sensor with an accuracy of ±1 °C. You can set the target temperature from 5 to 35 °C, and the display shows values from 5 to 99 °C. The external sensor included with the GB version is installed in the floor (ideally in a protective conduit between the heating wires), so the controller responds to the actual floor temperature, not just the air near the wall. Timer accuracy better than 1 % ensures your schedule starts exactly when it should.

The device's own consumption is below 1.5 W, so the Zigbee heating controller itself will hardly show on your electricity bill. Power-failure memory keeps your settings and resumes where it left off once power returns.

Control from the app, by voice or on the wall

Once paired with a Zigbee gateway, you can see the current temperature in the Tuya Smart, Smart Life or MOES app and change it from anywhere, for example on your way home from work or from your cottage. In the app you can create automations and scenes (for example lowering the temperature when everyone leaves the house), and device sharing gives other household members access too.

If you don't want to reach for your phone, just say “Alexa, set the bathroom to 24 degrees” or use Google Assistant. And the rotary knob with capacitive touch buttons is always available on the wall. The backlit ring changes colour according to the operating mode, so you can see at a glance whether the heating is on. The display supports 9 languages.

A weekly schedule that saves electricity

Electric underfloor heating is comfortable, but without sensible control it can push your electricity bill up considerably. The programmable thermostat from MOES offers a 5+1+1 mode directly on the device (weekdays, Saturday, Sunday) with 6 time periods per day. According to the manufacturer, the app lets you set up to 48 temperature changes per day. Your bathroom can be warm in the morning and evening, while during the day, when nobody is home, the heating only keeps a setback temperature.

If you are still working out the wiring and choice of control, see our guide How to wire a thermostat for underfloor heating.

Child lock and safe design

The child lock function locks the wall controls, so children or visitors can't change the temperature by accident. The housing is made of flame-retardant PC + ABS, and the IP20 rating is suitable for normal use in living spaces.

Easy installation in a standard wall box

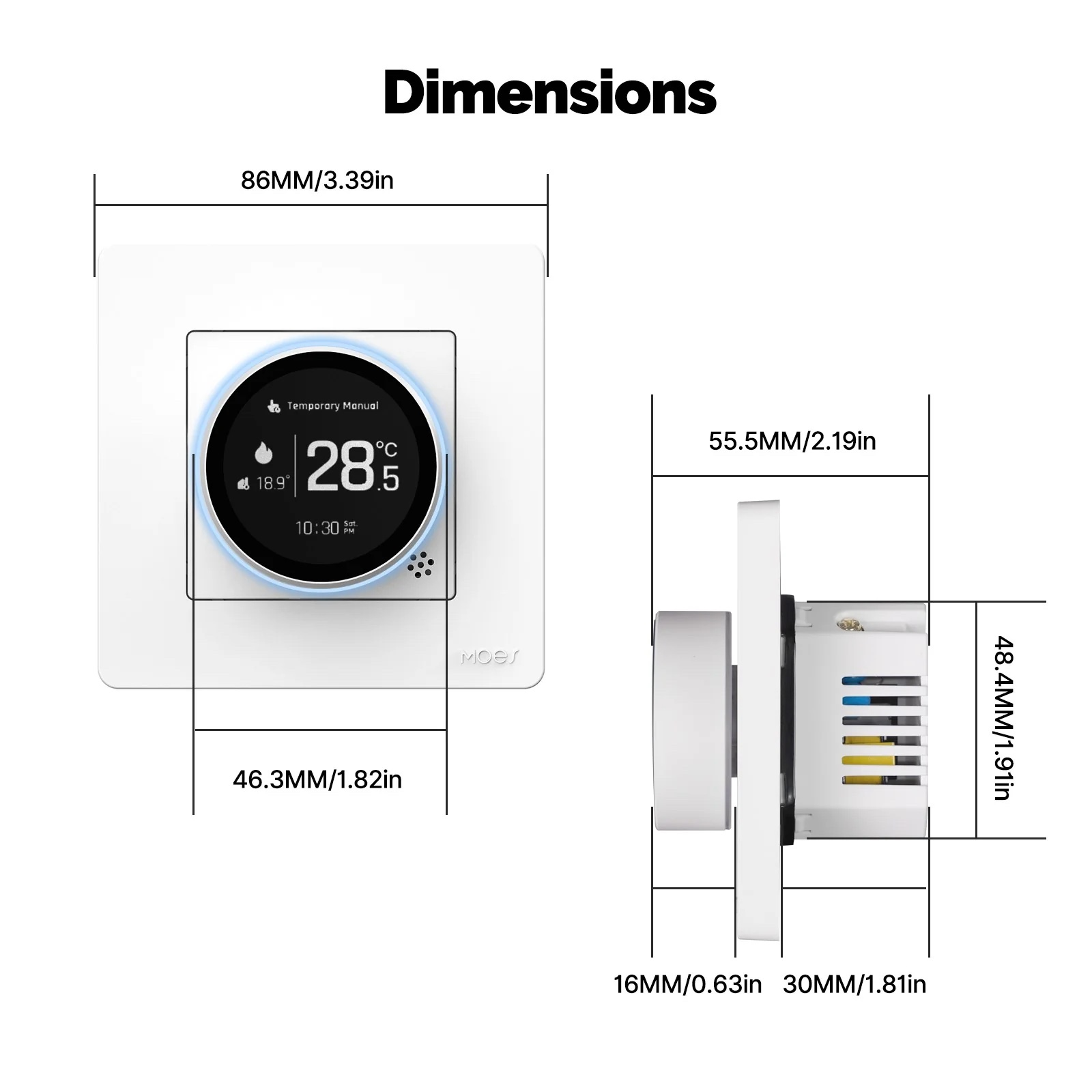

The thermostat fits a standard European round wall box with a diameter of 60 mm or a square 86 × 86 mm box, so replacing an old controller usually needs no work on the wall. It is powered directly from the 230 V mains (range 95 to 245 V AC), so there are no batteries to change. Connection to the electrical installation should be done by a qualified electrician.

The model is also listed as ZHTSRGB or by its full code ZHT-SR-GB-WH-MS (white). This is the GB version for electric heating: there are also GA versions for water underfloor heating and GC versions for gas and electric boilers, which are rated for only 5 A and are not suitable for electric heating mats.

Who the MOES ZHT-SR-GB thermostat is for

• Households with electric underfloor heating in the bathroom, kitchen or the whole flat.
• Owners of flats and cottages who want to switch the heating on remotely before they arrive.
• Tuya / Smart Life users who already have a Zigbee gateway and want to add heating to their scenes and automations.
• Anyone replacing an old manual controller who wants a modern look without renovation work.

Use cases

• Heated bathroom floor: warm tiles at 6:00 in the morning and in the evening, eco mode during the day.
• Cottage or holiday home: frost protection at 7 °C during the week, raised to 22 °C from the app on Friday.
• Heating mat under laminate flooring: the external floor sensor keeps an eye on the floor temperature.
• Automation with a window sensor: switch off the heating in the Tuya app when a window opens ⚡.
• Voice-controlled heating: change the temperature via Alexa or Google Home without looking for your phone.
• Replacing an old thermostat: fits the existing 60 mm box without building work.

Key features

• 16 A load: switches electric heating directly up to approx. 3.6 kW.
• Zigbee 3.0: energy-efficient, stable network, connects via a Zigbee gateway.
• External floor sensor included: measures the actual floor temperature.
• Tuya Smart, Smart Life and MOES apps: remote control, scenes and sharing.
• Voice assistants: works with Amazon Alexa and Google Assistant.
• 5+1+1 weekly programming: 6 periods per day on the thermostat, more changes in the app.
• Rotary knob and touch buttons: quick adjustment without a phone.
• Coloured illuminated ring: instant overview of the operating mode.
• Child lock and settings memory: protection against unwanted changes and power cuts.
• Display in 9 languages: clear, easy-to-understand menu.

Technical specifications

Protocols and compatibility

• Zigbee 3.0 (IEEE 802.15.4): the thermostat has no Wi-Fi and needs a Zigbee gateway (not included) to connect to your network. For the Tuya ecosystem, a good choice is the Nous E15 Zigbee and WiFi Gateway; you'll find more in the Zigbee gateways category.
• Tuya Smart, Smart Life, MOES: full support (remote control, schedule, scenes, device sharing).
• Amazon Alexa and Google Assistant: voice control by linking your Tuya / Smart Life account.
• Apple Home: the thermostat does not support Matter or HomeKit and will not appear directly in Apple Home.
• Home Assistant (Zigbee2MQTT / ZHA) and other hubs: as a Tuya Zigbee device it can usually be paired with your own coordinator, but the range of supported functions depends on the current version of the integration. Before buying, check whether the ZHT-SR model is supported in your version.

You'll find more devices for your network in the Tuya Zigbee products category.

Why choose the MOES ZHT-SR-GB

• Handles 16 A and the floor sensor is in the box, so you only need a gateway.
• Three ways to control it: wall knob, app and voice.
• Star Ring design with an illuminated ring that looks great in a modern interior.
• Good value compared with premium thermostats offering similar features.

 The MOES ZHT-SR-GB is a good choice if you build on the Tuya / Smart Life and Zigbee ecosystem and want a much lower price. You'll find more models in the smart thermostats category.
