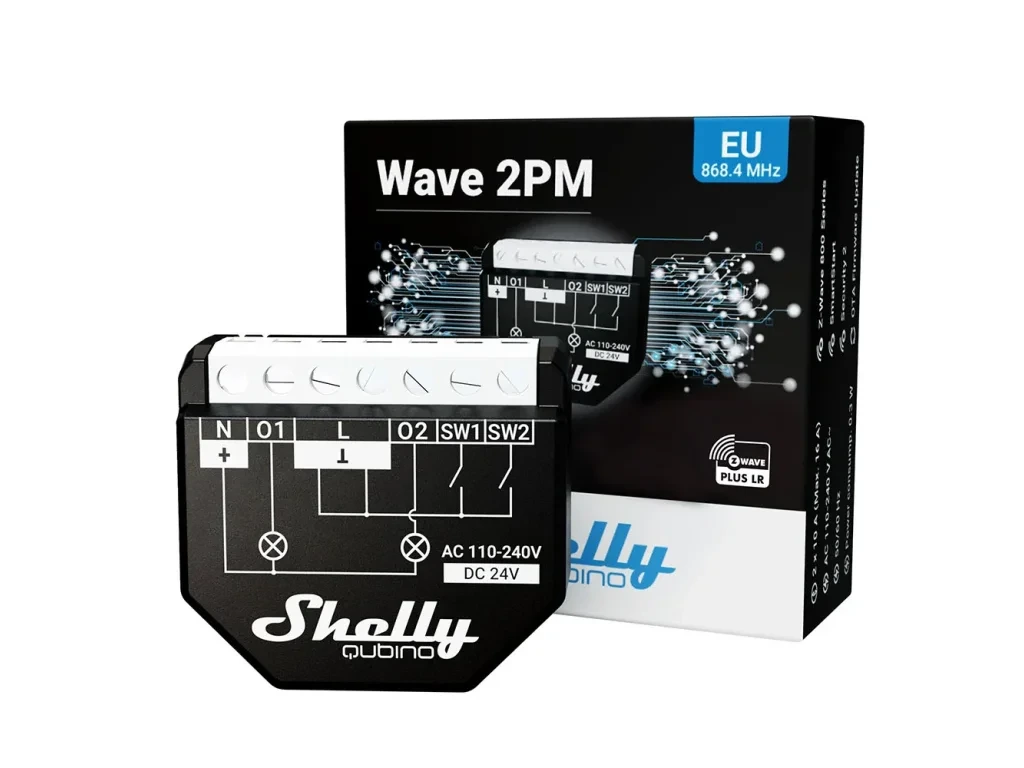

⚙️ Shelly Qubino Wave 2PM – A Two-Channel Z-Wave 800 Switch with Power Metering, Designed for Flush Mounting

Automate your lighting and remotely control a wide array of appliances in your home intelligently and with absolute clarity. The Shelly Qubino Wave 2PM is a premium miniature switching module featuring support for two independent channels. It allows you to simultaneously control and meticulously measure the energy consumption of two electrical circuits—such as living room chandeliers, clusters of light bulbs, ceiling fans, or small infrared heaters—directly from your mobile phone, from anywhere in the world.

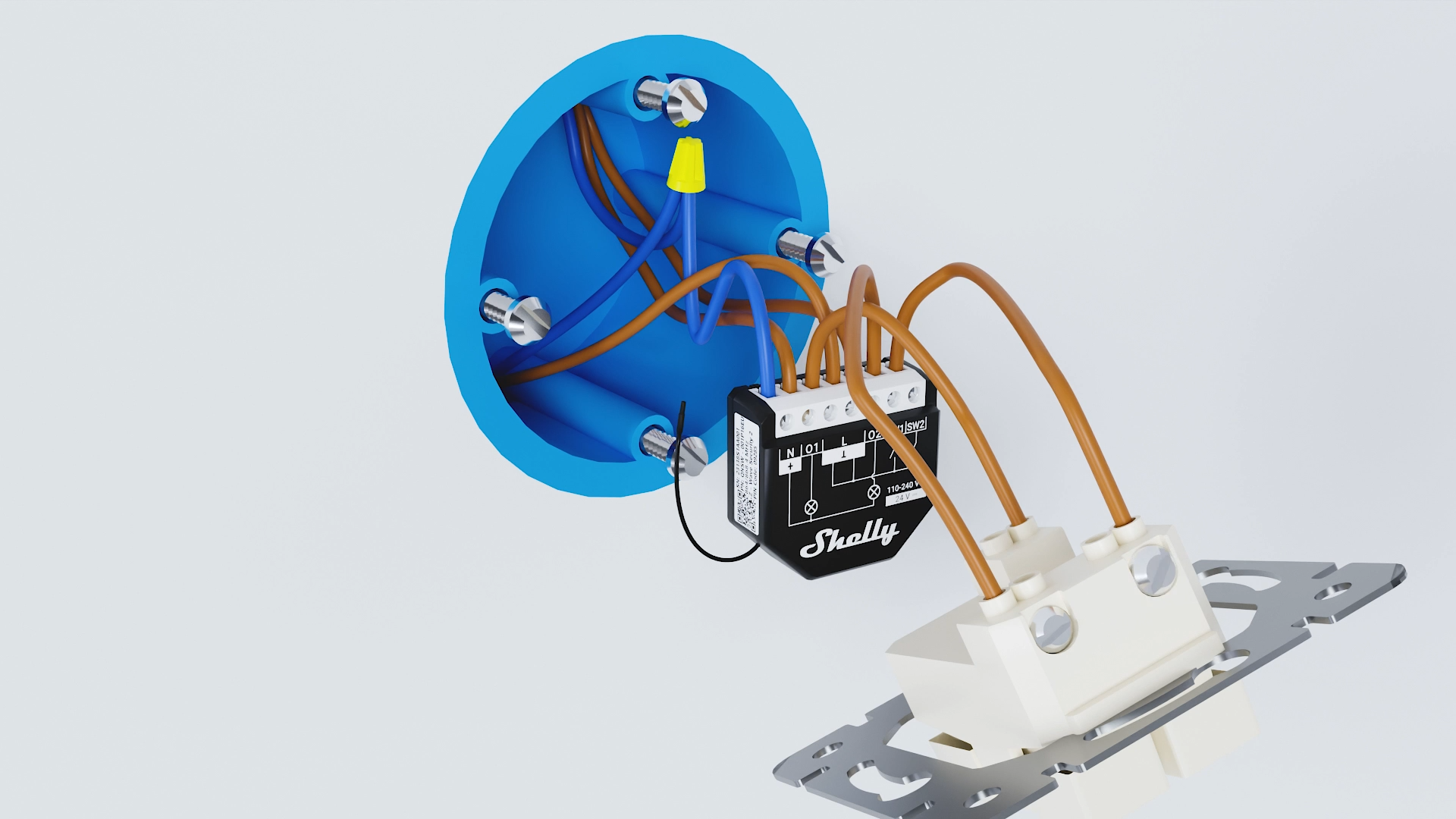

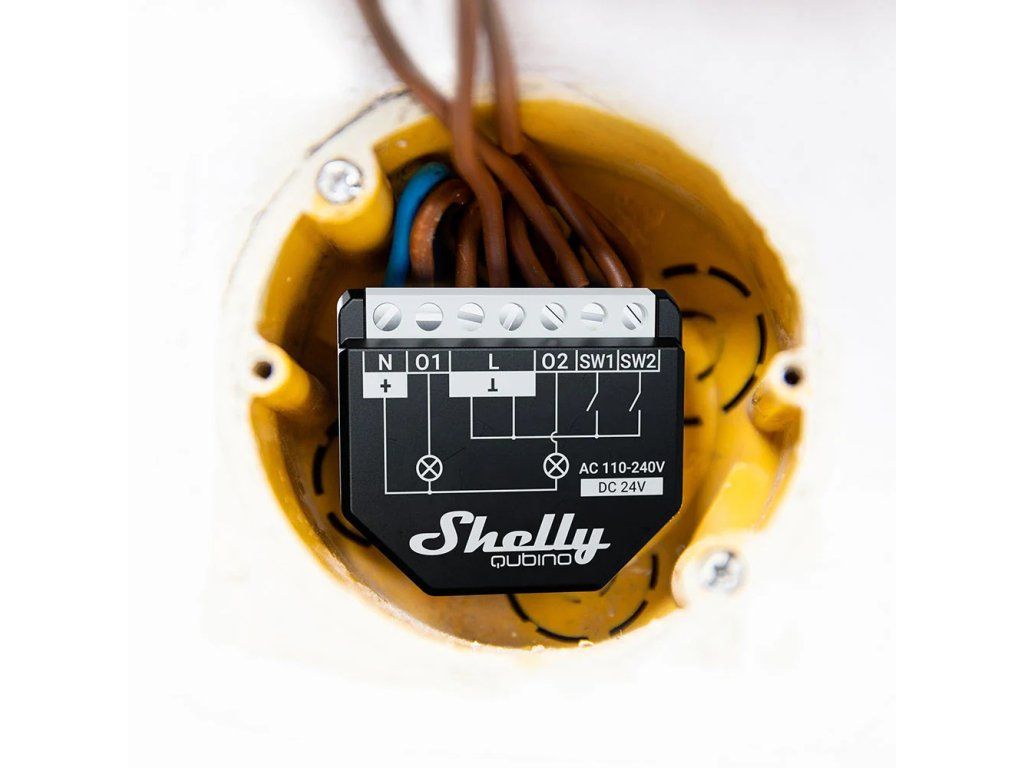

Powered by the latest Z-Wave 800 Series (S800) technology, this miniature module is engineered to be installed deep inside a flush-mounted wall box (right behind your classic double wall switch or power outlet). Once physically mounted, you connect your existing physical buttons to it, ensuring you can still operate your home using the familiar click of a wall switch. Following that, you securely pair the relay with your Z-Wave Smart Hub, instantly transforming your standard electrical wiring into a centralized smart home capable of executing highly sophisticated routines and scenes.

Precise Insights Thanks to Power Metering (PM)

The massive added value of the "PM" (Power Metering) version is the presence of an integrated, high-precision dual wattmeter. The Wave 2PM provides accurate energy consumption monitoring for each channel individually (in Watts), as well as a combined total (in Watts and accumulated kWh). This allows you to track in real-time exactly how much electricity the left side of your chandelier draws versus the right. It helps you calculate the genuine cost of running your lights and easily identify old bulbs that are needlessly wasting electricity. You can then leverage this data as triggers in your smart scenes (e.g., if the bathroom fan's power draw drops to 0W, push a notification to my phone).

Supports up to 16A Combined Load with Advanced Z-Wave Capabilities

This tiny module can safely switch current for two circuits with a capacity of up to 10 A per channel, subject to a strict, absolute maximum limit of 16 A combined for the entire device (making it perfect for switching two 8 A circuits, or one heavy load and one small load). It boasts exceptionally low self-power consumption, drawing less than 0.3 W while idle.

As a modern Z-Wave device, it fully supports local associations. This means the module can establish direct, lightning-fast wireless communication (Device-to-Device) within your home's Z-Wave network with other sensors (for example, a front door sensor can tell the Wave 2PM: "The door just opened, turn on the hallway light immediately"). This action executes with absolutely zero latency on a local level, completely independent of your internet connection or the operational status of your main smart hub.

Key Features of the Wave 2PM Module

• 🔌 Energy Consumption Measurement: The built-in dual wattmeter diligently measures the electricity being drawn and transmits this valuable data to your Smart Hub.
• 🌐 Amazing Compatibility: A certified Z-Wave Plus device. It operates flawlessly with verified control units (Fibaro, Home Assistant - Z-Wave JS, Aeotec SmartThings, Hubitat) and seamlessly interconnects with over 4,000 Z-Wave products from other brands.
• 📶 Network Range: Reliable indoor coverage of up to 40 meters. Because it is permanently wired to 230V mains power, the device actively amplifies the Z-Wave signal for other battery-powered modules, acting as a critical Mesh Repeater.

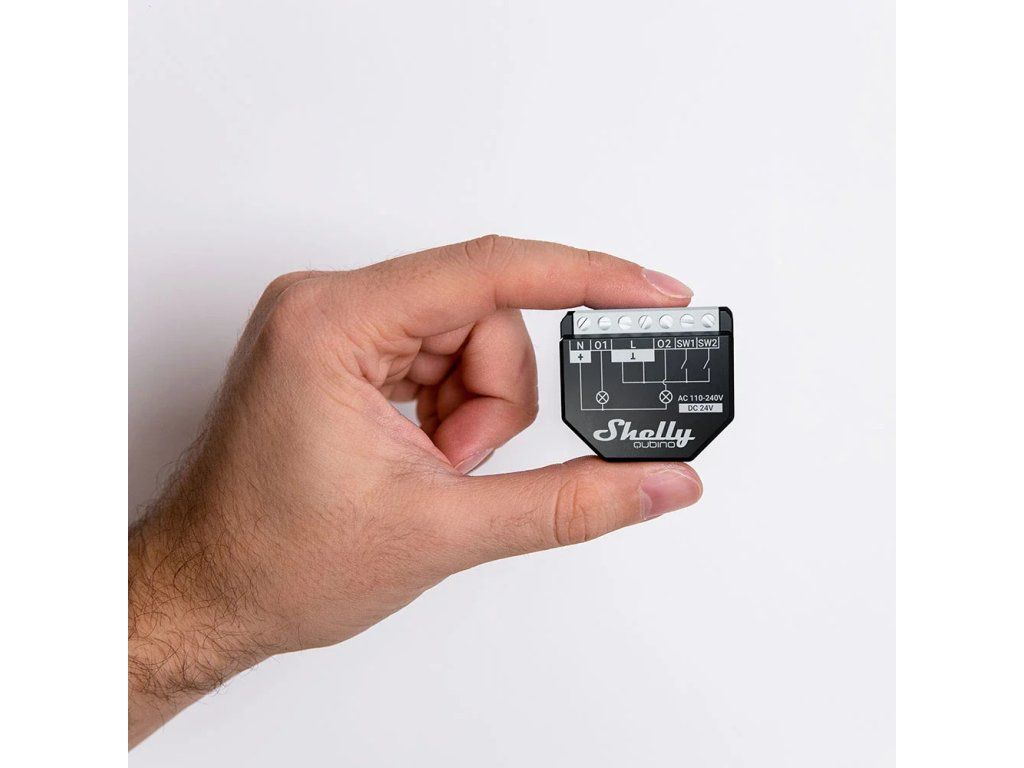

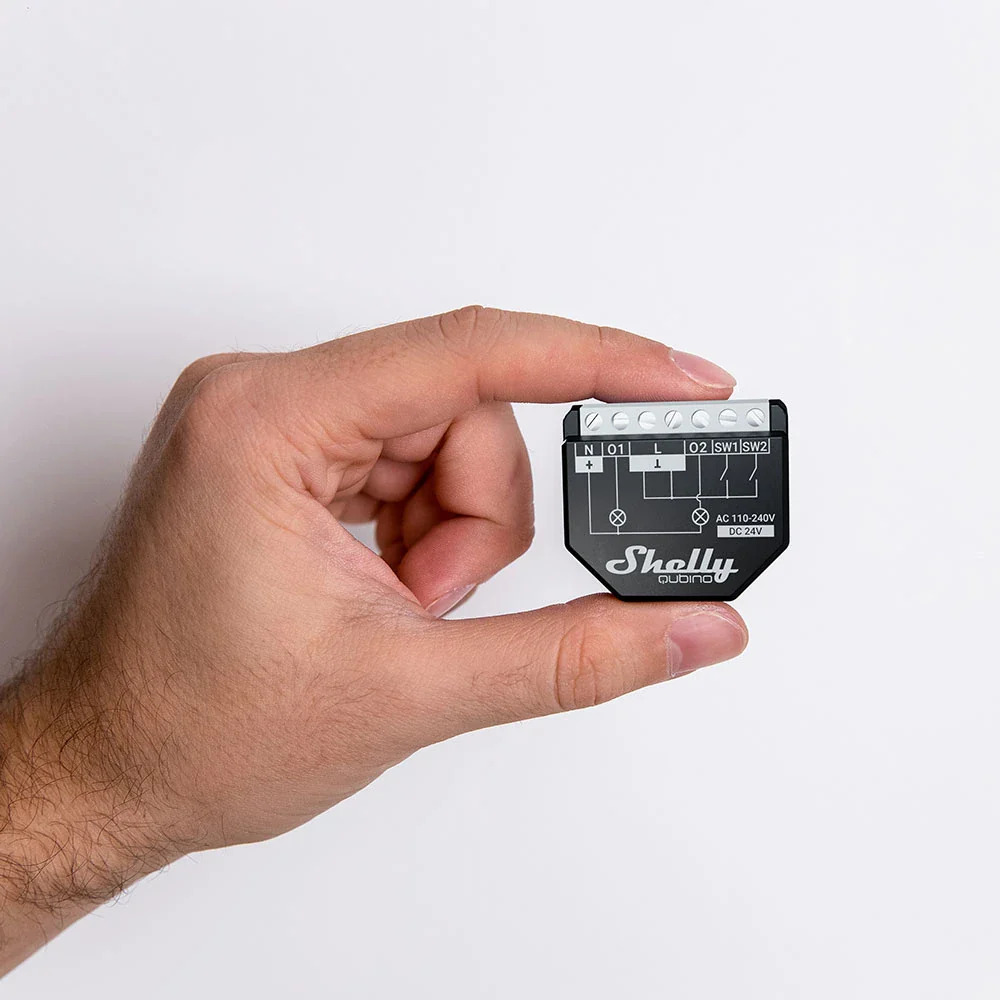

• 🔧 Compact Flush-Mount Design: Its tiny footprint (37 x 42 x 16 mm) guarantees the easiest possible installation into tight, crowded spaces behind your existing wall switches.
• 🤖 Rapid SmartStart: During the initial pairing phase, there is no need to run back and forth between your breaker box and wall switches. Simply scan the DSK/QR code printed on the packaging, and network inclusion will proceed automatically and securely.
• 🔒 Security 2 (S2 Authenticated): Military-grade encryption ensures the absolute highest level of protection for your smart home (secure key pairing, 100% defense against snooping hackers).
• 🛡️ Hardware Safety: Equipped with intelligent safeguards against dreaded internal module overheating and power grid overvoltage spikes.

📝 Important Notice: To establish wireless communication, this module does not connect to your home Wi-Fi router. Instead, it utilizes the dedicated Z-Wave frequency of 868.4 MHz. For configuration, inclusion into a mobile app, and general operation, you must possess your own, separate Z-Wave gateway (Coordinator / Smart Hub).
