Product detailed description

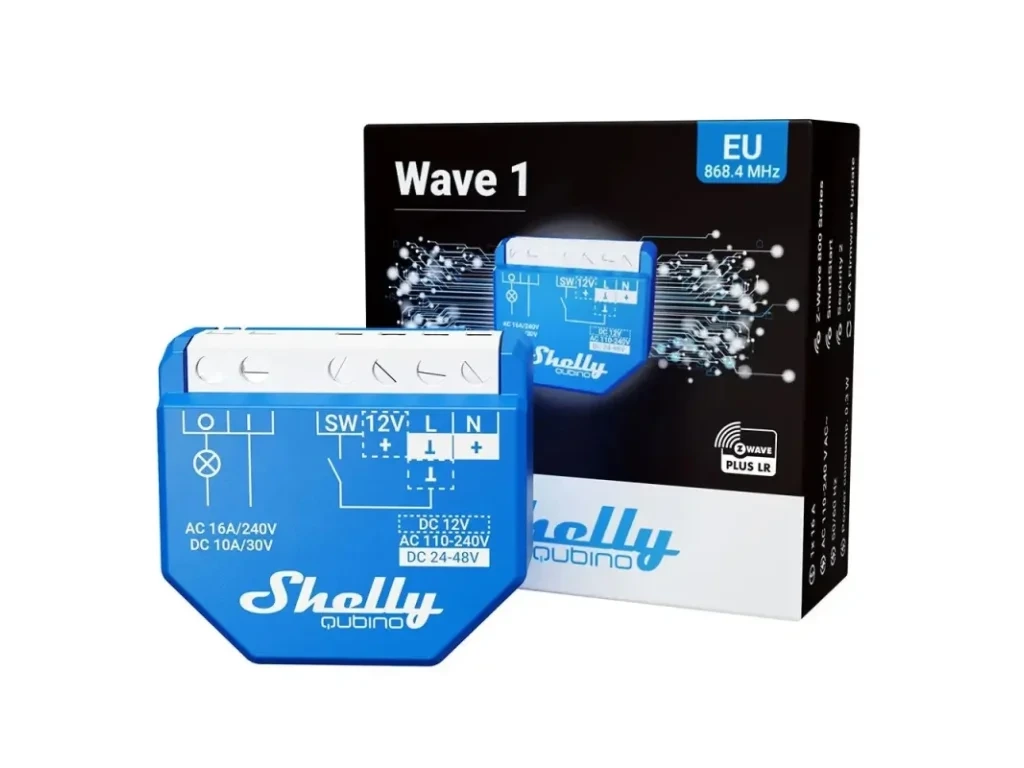

Shelly Wave 1 LR – Z-Wave Switching Relay (16 A) with Long Range

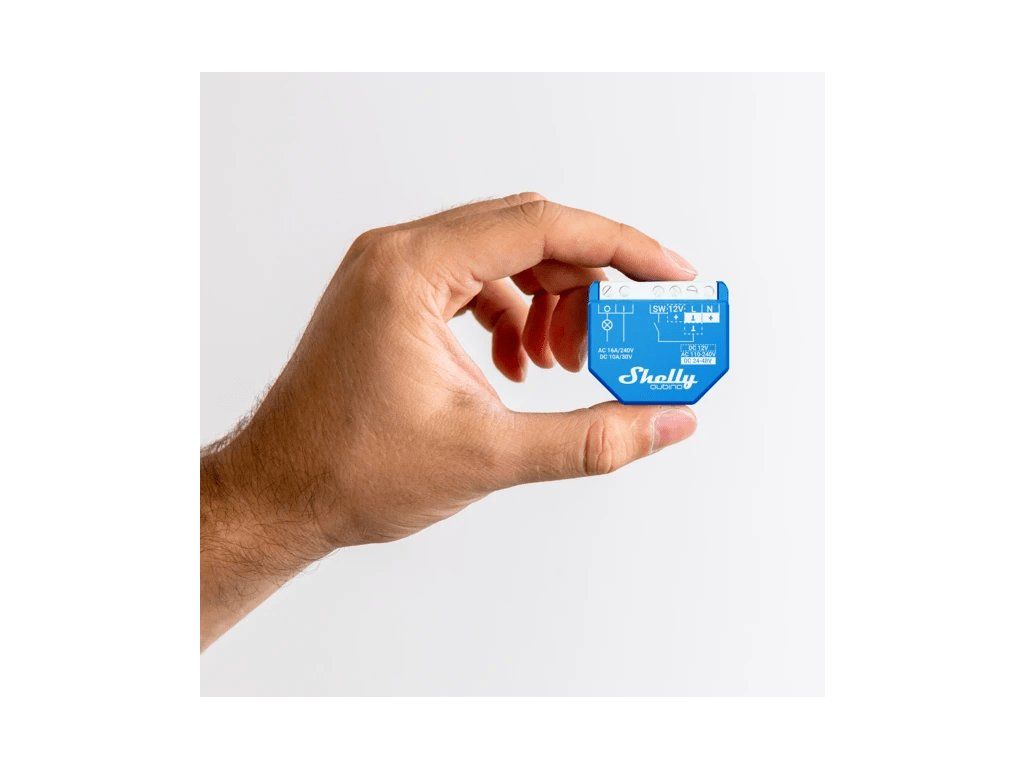

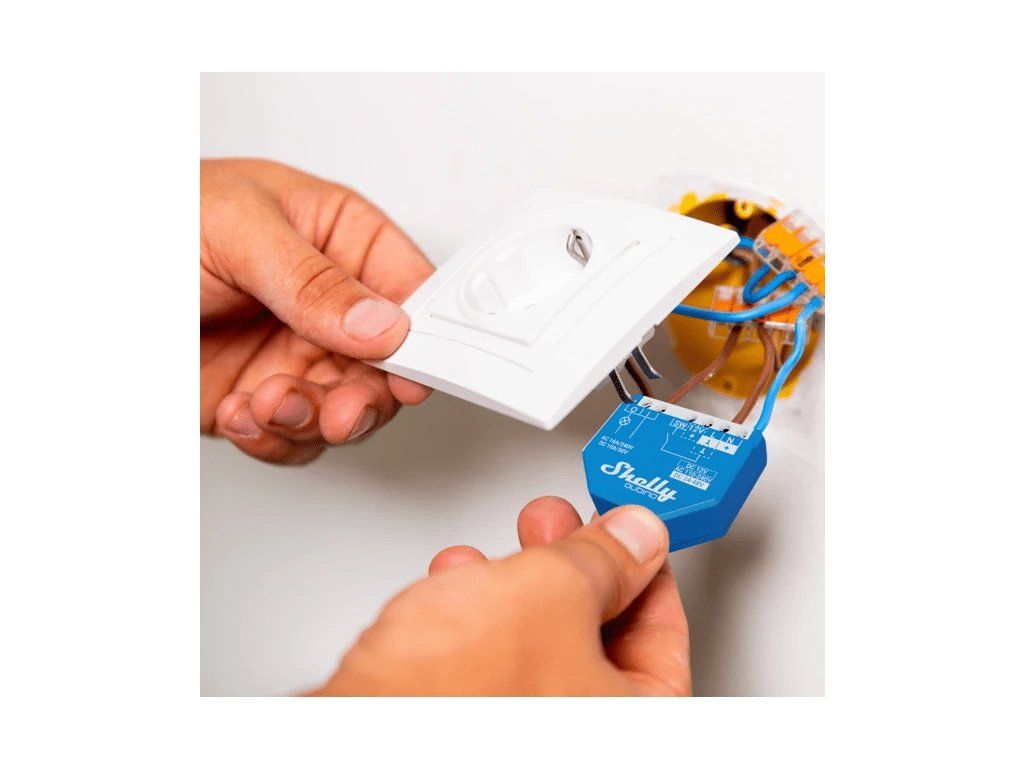

Take your home automation to the next level with the Shelly Wave 1 LR switching module. It is a high-end flush-mounted relay that supports switching high loads up to 16 amps. Thanks to its compact dimensions, you can easily hide this module behind a standard wall switch or electrical outlet, instantly turning it into a smart element of your home.

The Power of Z-Wave 800 Protocol

The device runs on the state-of-the-art Z-Wave 800 series chip. Thanks to the extended range capabilities (Z-Wave Long Range), your device can now communicate with the hub from a distance of over 1 km (line of sight) – perfect for large properties! It offers extreme reliability and ultra-low power consumption (less than 0.3 W). With Z-Wave technology, the module can communicate directly with other devices in your network regardless of their brand, via a central gateway (hub like Fibaro, Homey or SmartThings).

Universal use and dry contacts

Thanks to the support of different voltages and potential-free switching, Wave 1 has endless possibilities of use. From switching powerful lighting and outlets, to controlling garage doors and electric locks, to managing irrigation valves. You can easily set everything to your schedule and fully automate it with other sensors.

Main features

🔘 1-channel switch, up to 16 A

🔗 Dry contacts (potential-free)

⚡ Low and high voltage support

✅ Officially certified as compatible with SmartThings and Homey

📡 Supports Z-Wave Long Range - maintains a strong connection at distances exceeding 1 km (line of sight)

📶 Dual Z-Wave frequency options: choose between 864 MHz (ZWLR) or 868.4 MHz (Z-Wave Plus)

🌱 Energy efficient: consumes only up to 0.3 W of power

⚙️ Latest technology: Z-Wave 800 series

📸 Easy setup with SmartStart – just scan and you are good to go

🔒 Highest level of security, S2 authentication

Technical specifications

🏷️ Product name: Shelly Wave 1 EU LR

🔌 Device type: 1-channel Z-Wave smart switch with dry contact

⚡ Power supply: 110–240 V AC / 24–48 V DC / 12 V DC ±10%

🌱 Power consumption: < 0.3 W

🔗 Output type: Dry contact, potential-free relay

🌊 Maximum switching AC voltage: 240 V

📈 Maximum switching AC current: 16 A

🔋 Maximum switching DC voltage: 30 V

📉 Maximum switching DC current: 10 A

🌡️ Overheating protection: Yes

📡 Wireless technology: Z-Wave and Z-Wave Long Range

📻 Z-Wave Long Range frequency: 864 MHz

🕸️ Z-Wave mesh frequency: 868.4 MHz

📏 Long Range distance: Up to 80 m indoors or up to 1000 m outdoors depending on local conditions

🏠 Mesh network distance: Up to 40 m indoors depending on local conditions

🔁 Z-Wave repeater: Yes in mesh mode; no in Long Range mode

🧠 CPU: Z-Wave S800

📶 Maximum transmission power: < 25 mW

📐 Dimensions: 37 × 42 × 16 mm ±0.5 mm

⚖️ Weight: 26 g

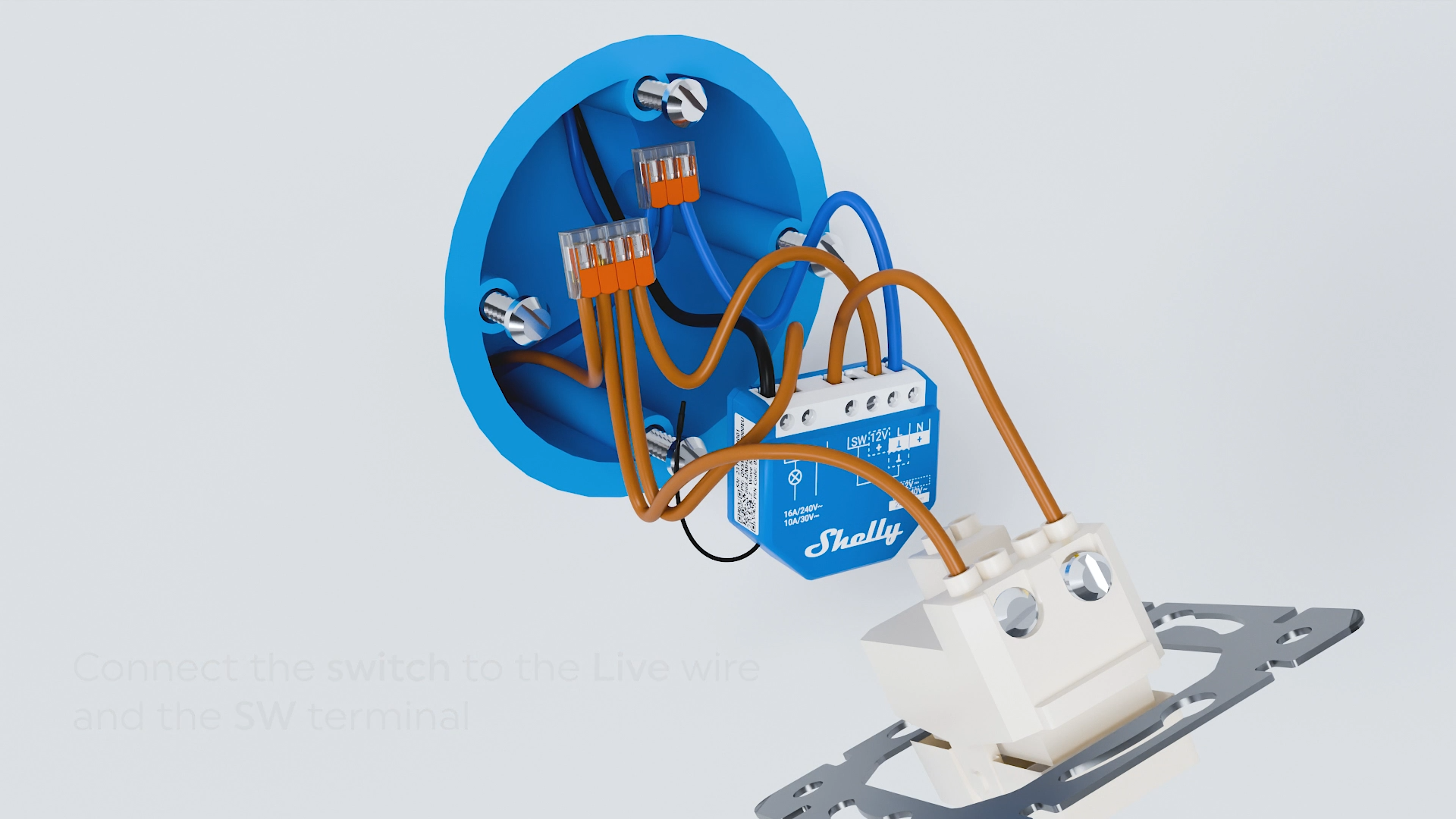

🛠️ Mounting: In an electrical wall box

🔧 Maximum terminal torque: 0.4 Nm

🧵 Conductor cross-section: 0.5 to 1.5 mm²

✂️ Wire stripping length: 5 to 6 mm

🛡️ Shell material: Plastic

🎨 Color: Blue

🌡️ Operating temperature: -20 °C to 40 °C

💧 Humidity: 30 % to 70 % RH

⛰️ Maximum altitude: 2000 m
