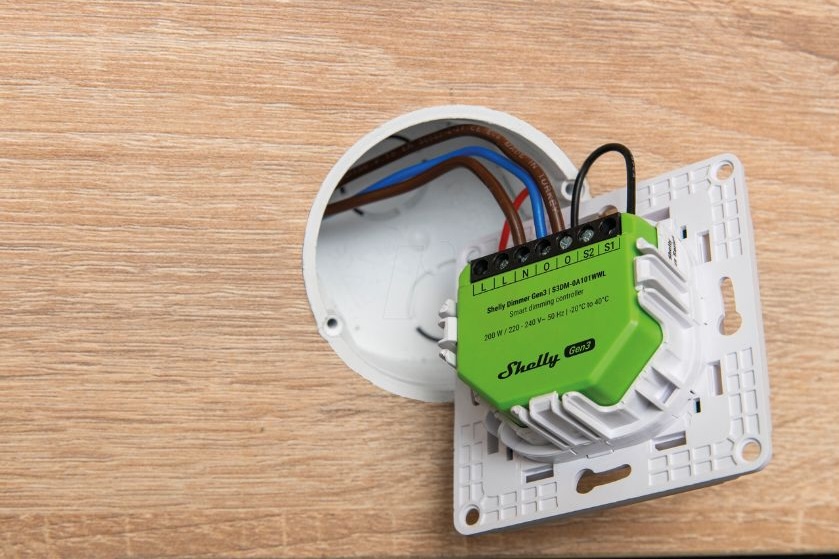

Shelly Dimmer Gen3
Code: SHELLY-DIMMER-GEN3.png?6a0ecbfc)
.png?6a269095)
Related products
Product detailed description
💡 Shelly Dimmer Gen3 – Smart Dimmer for Every Installation
Shelly Dimmer Gen3 is a third-generation smart module that brings many improvements over its predecessor, the Shelly Dimmer 2. It doesn’t just turn lights on and off; it allows for comfortable brightness control tailored to your preferences, activities, or mood.
Main Advantages of Shelly Dimmer Gen3
- 🌈 Smart lighting control: Adjust light brightness according to the time of day, activities, or mood.
- ⏰ Flexible automation: Time schedules, sunrise/sunset automation, and smooth light fading.
Compact Design for Easy Installation
- 📏 Small dimensions (42 × 36 × 14 mm), fits behind standard wall switches or sockets.
- 🏠 Ideal for both new builds and retrofitting older homes.
Supported Lighting Types and Loads
- 💡 Incandescent and halogen bulbs: up to 200 W
- 🌟 Dimmable LED bulbs: up to 150 W
- ⚡ Low-voltage halogens (ferromagnetic transformers): up to 200 VA
- 🔌 Dimmable electronic transformers: up to 200 W
Easy Control
- 🎛️ Local control via wall switches, the app, or automations.
- ↔️ Supports two-way and multi-way switch wiring.
- 🔒 Ability to disable physical control (useful for children's rooms).
Advanced Features and Protections
- 🌗 Supports both leading-edge and trailing-edge dimming.
- ⚙️ Works with or without a neutral wire (neutral recommended for better stability).
- 🔥 Protections: overheating, overvoltage, and overload.
Technical Specifications
- ⚡ Power Supply: 110–240 V AC ±10 %, 50/60 Hz
- ⚙️ Power Consumption: <1.5 W
- 🌐 Wireless Connection: Wi-Fi 2.4 GHz, Bluetooth for quick pairing
- 📡 Protocols: MQTT, CoAP, WebSocket
- 🌡️ Operating Temperature: –20 °C to +40 °C
Integration and Operating Modes
- ☁️ Cloud Mode: Control via the Shelly Cloud app.
- 🖥️ LAN Mode: Local control without internet access.
- 🌐 HTTP/HTTPS Webhooks and locally stored schedules (up to 20).
- 🧩 mJS scripting support for advanced automation.
Note: Shelly Dimmer Gen3 switches and dims AC voltage (110–240 V AC). It does not support dry contacts. Input and output lines must be on the same phase.
Additional parameters
| Category: | Shelly |
|---|---|
| Warranty: | 2 years |
| EAN: | 3800238070526 |
| ? Wireless protocol: | WiFi, Bluetooth |
