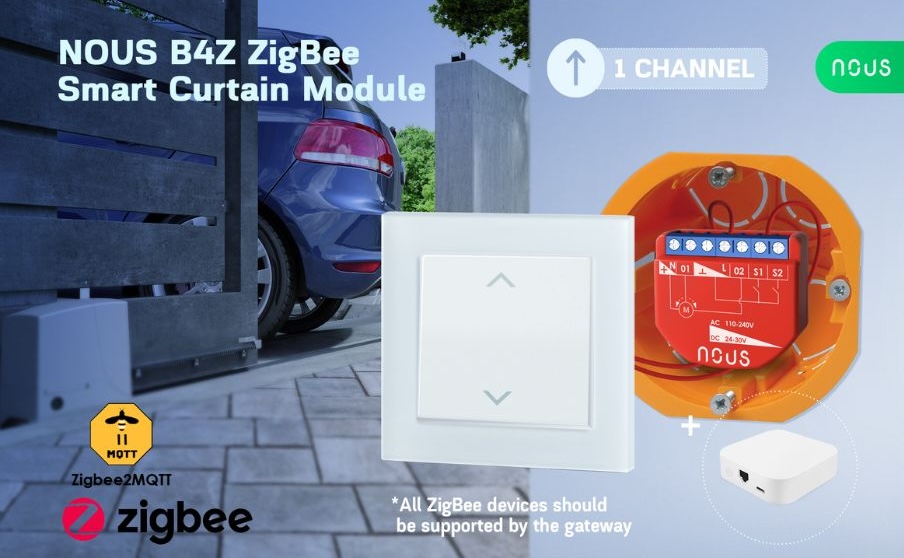

Nous B4Z Smart Zigbee Roller Shutter Module
Code: B4Z.png?6a0ecbfc)
.png?6a269095)
Related products
Product detailed description
⚙️ Motor Control Module with Zigbee2MQTT
Nous B4Z is a Zigbee 3.0 module designed to control motors in blinds, roller shutters, and gates. Thanks to this module, which is placed behind the switch, you can control standard motors and add their operation to the TUYA/Smart Life app, and thanks to Zigbee2MQTT support, also to Home Assistant and other automation platforms.
The module features switch inputs, meaning classic control of the connected shutter is always available. Thanks to its small dimensions, it easily fits into a standard 6cm junction box.
Main Settings
🔖 Brand: Nous
✨ Special Features: Works with the app or locally in Home Assistant with zigbee2mqtt or zha, without power meter
📜 Certificate: CE
🔗 Compatibility: Requires a ZigBee 3.0 hub/gateway
🛡️ Material: PC V0 flame-retardant plastic
Specifications
📏 Device Dimensions: 42 x 37 x 16 mm
⚡ Maximum Load: 10 A/channel, total 16 A, DC: 10 A
🌡️ Operating Temperature: 0 °C ~ 40 °C
🔌 Operating Voltage Range: 100 – 240 V AC/24 – 30 V DC
💧 Moisture Protection Level: IP20
⚖️ Device Weight: 30 g
Network
📡 Communication Standard: IEEE 802.15.4
📶 Protocol: Zigbee 3.0
📱 Smartphone Control: Nous smart, Tuya smart life app, Home Assistant, etc.
🗣️ Voice Assistant Compatibility: Alexa, Google Assistant
📡 Frequency Range: 2400 – 2483 MHz
📈 Max. Transmit Power: 10 dBm
Additional parameters
| Category: | Tuya Smart Home |
|---|---|
| Warranty: | 2 years |
| EAN: | 5905072800532 |
| ? Supported in system: | Google Home, Amazon Echo, Tuya/SmartLife, HomeAssistant, TUYA |
| ? Wireless protocol: | Zigbee |
Product rating
Be the first who will post an article to this item!
Discussion
Be the first who will post an article to this item!
The Nous brand brings products specifically designed for the Tuya Smart (Smart Life) application, which is available for free for both Android and iOS. Installation is incredibly simple – once you download the app, you can immediately start adding your Wi-Fi devices.
If you plan to expand your smart home with Nous sensors, simply add the central E1 gateway to the app first. Nous products excel in their great price-to-quality ratio and are fully compatible with the widely used Tuya ecosystem.
