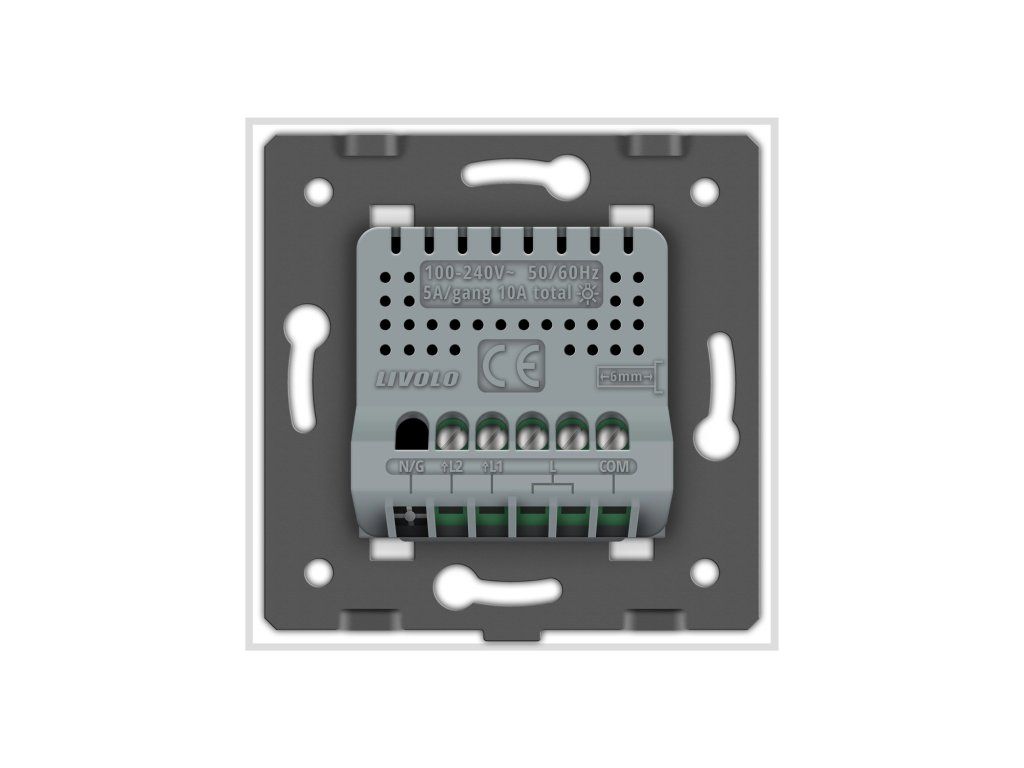

LIVOLO VL-C702IH-11 Potential-Free Touch Button 2/0 (230V) White

Product detailed description

Read our guide:

Touch switches for smart home installations

The double potential-free button (Type 2/0) operates on an impulse principle (like a doorbell push button). Touching the glass surface closes the internal relay, and releasing your finger immediately opens it. Such a zero-voltage switching solution (dry contact) is ideal for use in smart homes with central control units (e.g., Loxone, TapHome, Fibaro, etc.) or for controlling garage doors or other specific circuits requiring a dry contact.

Light with a single touch

With LIVOLO touch switches, controlling light becomes a whole new experience. A simple touch on the glass surface is all it takes to send a pulse to your control system. No more clicking or flipping physical switches... It’s that easy! The module reacts to the touch of a finger, palm, or elbow, even through thin clothing.

No special installation requirements

The module itself requires a standard 230V AC connection to power its electronics. However, the contacts it switches are completely potential-free (galvanically isolated). Installation in a standard flush-mounted box takes no more than 5 minutes.

Multiple switches in a row...

Thanks to the modular system, you can combine various switch mechanisms under a single continuous glass panel. For example, if you have 5 switches side by side, simply purchase a 5-gang frame (found in the "Frames" category) and choose the appropriate mechanisms. Your complete, seamless glass panel is ready.

TECHNICAL SPECIFICATIONS

• Dimensions: 80 x 80 x 40 mm
• Operating Voltage for electronics: AC 110-250 V / 50-60 Hz
• Switching type: Impulse / Potential-free (dry contact)
• Max Current per button: 5A per channel
• Standby Power Consumption: max. 0.1 mA
• Operating Environment: -30°C to +70°C, max. 95% RH
• Lifespan: 100,000 MTBF cycles
• LED Backlight: Blue
• Manufacturer: LIVOLO INTERNATIONAL ELECTRIC LIMITED (CN)
