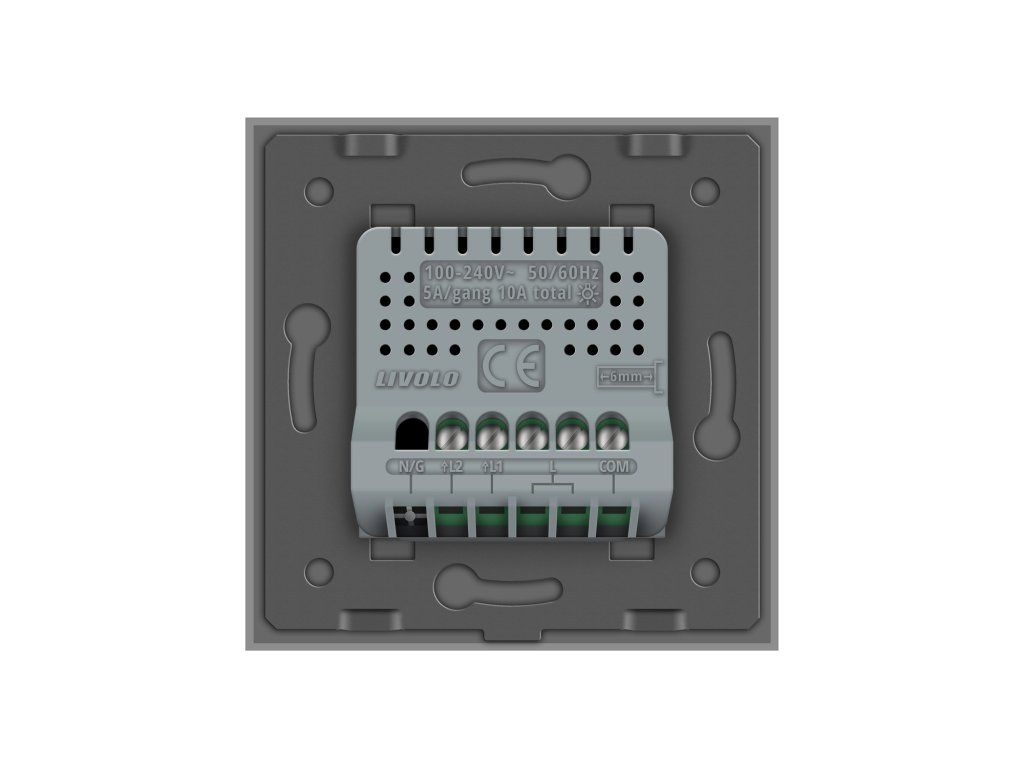

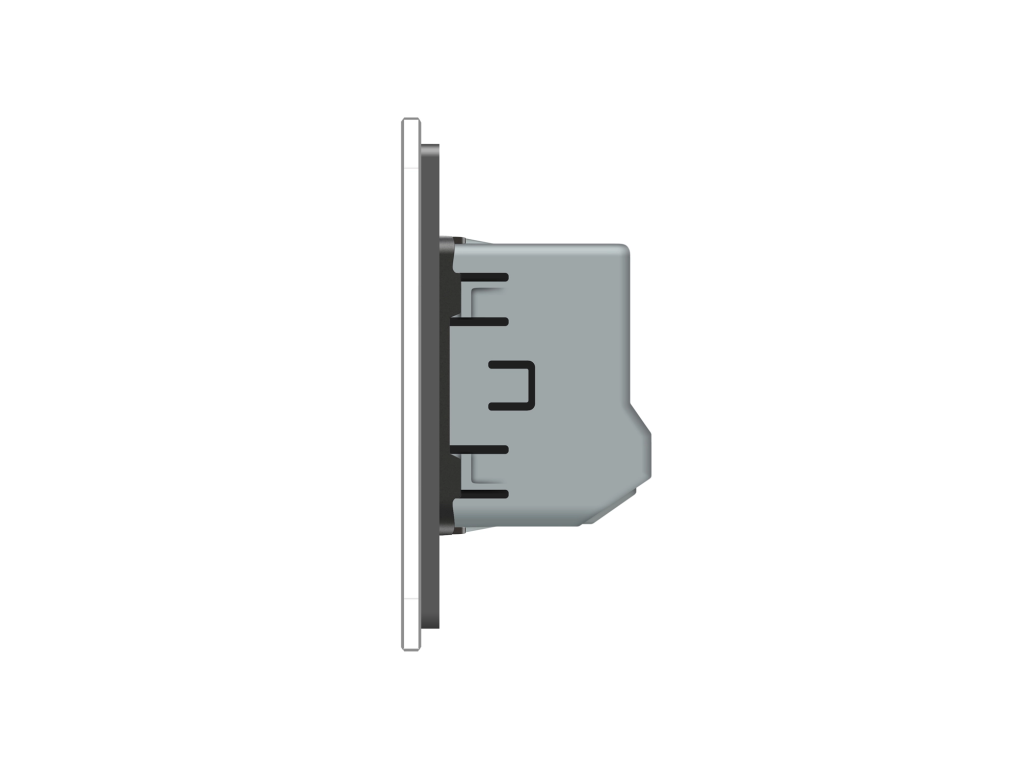

LIVOLO VL-C702CH-15 Potential-Free Touch Button 2/0 (12/24V) Silver

Product detailed description

Read our guide:

Potential-Free Buttons for Smart Home (12/24V)

Potential-free touch buttons (dry contact) are designed for situations where a voltage-free output is required for switching. These models do not control the light source directly but send a clean impulse to an external smart module (e.g., Loxone), which then controls the light. They feature a beautiful silver glass design that enhances any modern interior.

For a push button, the contact remains closed only as long as you hold your finger on the touch surface (operates like a doorbell). Once you remove your finger, the contact opens immediately.

System Compatibility:

• FIBARO and Z-Wave modules – requires a stable 12/24V DC power supply for the button's electronics.
• LOXONE – 24V push-button system (the button is powered by 24V DC; output contacts switch 24V DC into the Loxone system).
• All other 12/24V smart systems supporting impulse switching (Type 1/0 or 2/0).

Technical Specifications:

• Dimensions: 80 x 80 x 40 mm
• Power Supply (Electronics): 12/24V DC
• Switching type: Impulse / Potential-free (dry contact)
• Maximum Contact Load: 1000W per channel
• Standby Power Consumption: max. 1 mA
• Operating Environment: -30°C to +70°C, max. 95% RH
• Lifespan: 100,000 MTBF cycles
• LED Backlight: Blue
• Manufacturer: LIVOLO INTERNATIONAL ELECTRIC LIMITED (CN)
