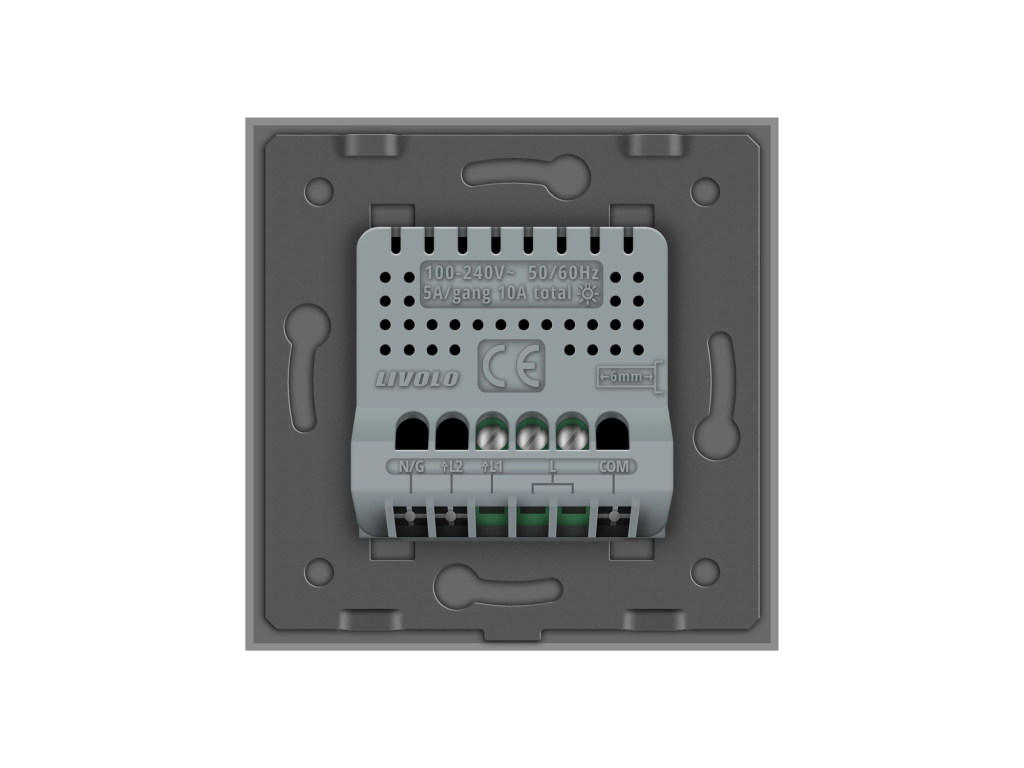

LIVOLO VL-C701IH-15 Potential-Free Touch Button 1/0 (230V) Silver

Product detailed description

Read our guide:

Potential-Free Buttons for Smart Home (230V)

Potential-free touch buttons (dry contact) are designed for situations where a voltage-free output is required for switching, or a separate voltage circuit. These models do not control the light source directly but send a clean impulse to an external smart module, which then controls the light. They feature a beautiful silver glass design that enhances any modern interior.

For a push button, the contact remains closed only as long as you hold your finger on the touch surface (operates like a doorbell). Once you remove your finger, the contact opens immediately.

System Compatibility:

• LOXONE – 24V push-button system (the button is powered by 230V AC; output contacts switch 24V DC into the Loxone system).
• FIBARO and other 230V Z-Wave modules.
• Direct control of LED lighting (230V AC) or switching the low-voltage output of a power supply (e.g., 24V).
• All other systems supporting standard 1/0 or 2/0 type push buttons with 230V electronics power supply.

Technical Specifications:

• Dimensions: 80 x 80 x 40 mm
• Power Supply (Electronics): 230V AC / 50Hz
• Switching type: Impulse / Potential-free (dry contact)
• Maximum Contact Load: 1000W per channel
• Standby Power Consumption: max. 1 mA
• Operating Environment: -30°C to +70°C, max. 95% RH
• Lifespan: 100,000 MTBF cycles
• LED Backlight: Blue
• Manufacturer: LIVOLO INTERNATIONAL ELECTRIC LIMITED (CN)
