Product detailed description

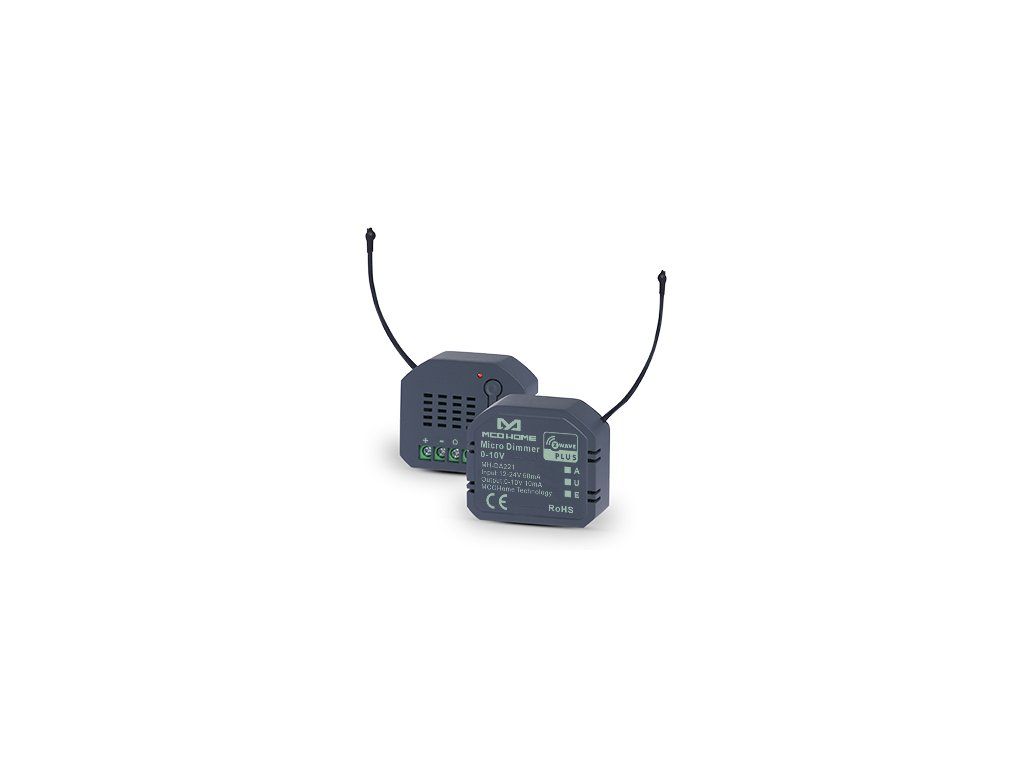

MCO Home 0-10V Dimmer – Z-Wave Control Module

Solve advanced dimming and motor control issues with a rare gem in the Z-Wave ecosystem. The MCO Home 0-10V Dimmer is a professional-grade, flush-mounted micro-module specifically engineered to regulate devices that rely on an analog 0-10V control signal. It integrates seamlessly into leading Z-Wave hubs like Fibaro and Homey.

Control LEDs, HVAC, and Ventilation

This module is predominantly used for the smooth, flicker-free dimming of professional 0-10V LED drivers. However, its capabilities extend far beyond lighting. Thanks to its analog voltage output, it is the perfect solution for smoothly controlling the speed of EC motors in exhaust fans, regulating domestic heat recovery ventilation (HVAC) systems, or managing proportional valves on boilers and heating manifolds.

Versatile Mounting and Z-Wave 700

Designed for invisibility, the module is compact enough to fit inside a standard wall junction box behind your existing switch, or it can be wired directly inside a light fixture canopy. You can physically wire it to a standard toggle switch, a momentary push-button, or even a rotary potentiometer knob. It operates on the highly reliable Z-Wave Plus (700 series) protocol, guaranteeing exceptional signal stability and range.

Technical Specifications:

• Power Supply: 12 – 24 V DC.
• Output Signal: Analog variable signal from 0 to 11 V DC.
• Control Accuracy: < 3% Full Scale (FS).
• Power Consumption: Ultra-low, consuming only 0.5 W.
• Supported Wall Switches: Momentary push-button, toggle switch, rotary potentiometer.
• Protocol: Z-Wave Plus V2 (700 series chipset).
• Operating Temperature: -10°C to +50°C.
